MX2-H系列船用高效率三相异步电动机

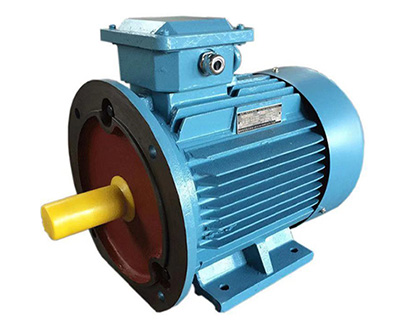

MX2-H系列船用高效率三相异步电动机(机座号80~355)

MX2-H Series High Efficiency Three phase Marine Asynchronous Motor(Frame Size80~355)

产品概述 (Product Overview )

MX2—H 系列为全封闭,自扇冷式,船用高效率三相鼠笼式异步电动机,该系列电机的效率符合GB18613-2012《中小型三相异步电动机能效限定值及能效等级》中的2级能效。符合CCS船级社规范要求。除了效率高的优点,此外还有噪声低,外形美观,防护等级高,温升低的优点,适用于船舶上作驱动各种机械,如泵类、通风机、分离器、液压机械及其它辅助设备等之用。

MX2—H Series are totally-enclosed, fan-cooled High Efficiency three-phase marine asynchronous motors of squirrel caged type. The efficiency could meet grade 2 of national standard GB18613-2012 “Minimum allowable value of energy efficiency and rating criteria of small and medium three-phase asynchronous motors ”this series motors are approved by CCS. Besides high efficiency, the motors has advantage of low noise,good-looking appearance,high protection.low temperature rise etc. The motors are suitable for driving various machines on ships such as pumps, blowers, separators, hydraulic engines and other auxiliary equipment.

工作环境条件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

环境温度: 0~+45℃

Ambient temperature  0~+45℃

空气相对湿度 ≤95%

Relative humidity should be less than 95%.

倾斜:  ±30°

Inclination :±30°

摇摆:  ±22.5°

Swing:±22.5°

有盐雾、油雾、霉菌及海水的影响

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海装置正常营运和作业中产生的冲击、振动的影响

Influenced by shock and vibration come from ships and offshore installation.

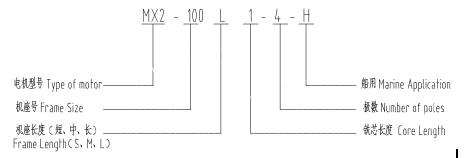

型号说明(Type Designation)

轴 承(Bearing)

机座号
Frame Size
极数
No. of poles
轴承
Bearings
主轴伸端  Driving end 非轴伸端
B3、B5、B35 V1 Non-Driving end
80 2,4 6204-2RS/C3 6204-2RS/C3
90 2,4,6 6205-2RS/C3 6205-2RS/C3
100 2,4,6 6206-2RS/C3 6206-2RS/C3
112 2,4,6 6206-2RS/C3 6206-2RS/C3
132 2,4,6 6208-2RS/C3 6208-2RS/C3
160 2,4,6 6309-2RS/C3 6309-2RS/C3
180 2,4,6 6311/C3 6311/C3
200 2,4,6 6312/C3 6312/C3
225 2 / 4,6 6312/C3/6313/C3 6312/C3
250 2 / 4,6 6313/C3/6314/C3 6313/C3
280 2/4,6 6314/C3/6317/C3 6314C3
315 2/4,6 6317/C3/N319/Z2 7317ACJ/7319ACJ 6317/C3/6319/Z2
355 2/4,6 6319/C3/N322/Z2 7319ACJ/7322ACJ 6319/C3/6322/Z2

技术数据(Technical Data)

2 极 2 poles

型号
Type
功率
Output kW
电流
current  A
效率
Eff.100%
功率因数
cosφ
转速
Speed r/min
堵转转矩/额定转矩
Locked-rotor torque vs Rated toque Tst/Tn
堵转电流/额定电流
Locked-rotor current vs Rated current Ist/In
zui大转矩/额定转矩
Breakdown torque vs Rated torque Tmax/Tn
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz
MX2-80M1-2-H 0.75 1.7 1.6 80.7 0.82 2870 3480 2.3 7 2.3
MX2-80M2-2-H 1.1 2.4 2.1 82.7 0.83 2875 3485 2.2 7.3
MX2-90S-2-H 1.5 3.2 2.8 84.2 0.84 2880 3490 7.6
MX2-90L-2-H 2.2 4.6 4.0 85.9 0.85 2880 3490
MX2-100L-2-H 3 6.0 5.2 87.1 0.87 2880 3490 7.8
MX2-112M-2-H 4 7.8 6.8 88.1 0.88 2915 3535 8.3
MX2-132S1-2-H 5.5 10.6 9.3 89.2 0.88 2930 3540 2.0
MX2-132S2-2-H 7.5 14.4 12.4 90.1 0.88 2930 3540 7.9
MX2-160M1-2-H 11 20.6 17.9 91.2 0.89 2945 3550 8.1
MX2-160M2-2-H 15 27.9 24.1 91.9 0.89 2945 3550
MX2-160L-2-H 18.5 34.2 30.1 92.4 0.89 2945 3550 8.2
MX2-180M-2-H 22 40.5 29.6 92.7 0.89 2950 3555
MX2-200L1-2-H 30 54.9 48.4 93.3 0.89 2965 3575 7.6
MX2-200L2-2-H 37 67.4 59.3 93.7 0.89 2965 3575
MX2-225M-2-H 45 80.8 69.8 94 0.9 2965 3575 7.7
MX2-250M-2-H 55 98.5 85.2 94.3 0.9 2975 3580
MX2-280S-2-H 75 134.0 115.7 94.7 0.9 2975 3580 1.8 7.1
MX2-280M-2-H 90 160.0 138.2 95 0.9 2975 3580
MX2-315S-2-H 110 195.0 168.4 95.2 0.9 2985 3585
MX2-315M-2-H 132 234.0 202.1 95.4 0.9 2985 3585
MX2-315L1-2-H 160 279.0 241.0 95.6 0.91 2985 3585 7.2
MX2-315L2-2-H 200 349.0 301.4 95.8 0.91 2985 3585 2.2
MX2-355M-2-H 250 436.0 376.5 95.8 0.91 2985 3585 1.6
MX2-355L-2-H 315 549.0 474.0 95.8 0.91 2985 3585

4极 4 poles

型号
Type
功率
Output kW
电流
Current  A
效率
Eff.100%
功率
因数cosφ
转速
Speed r/min
堵转转矩/额定转矩
Locked-rotor torque vs Rated toque  Tst/Tn
堵转电流/额定电流
Locked-rotor current vs Rated current Ist/In
zui大转矩/额定转矩
Breakdown torque vs Rated torque Tmax/Tn
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz
MX2-80M2-4-H 0.75 1.8 1.6 82.5 0.75 1430 1740 2.3 6.6 2.3
MX2-90S-4-H 1.1 2.6 2.2 84.1 0.76 1430 1740 6.8
MX2-90L-4-H 1.5 3.5 3.0 85.3 0.77 1430 1740 7
MX2-100L1-4-H 2.2 4.8 4.1 86.7 0.81 1440 1750 7.6
MX2-100L2-4-H 3 6.3 5.5 87.7 0.82 1440 1750
MX2-112M-4-H 4 8.4 7.3 88.6 0.82 1455 1755 2.2 7.8
MX2-132S-4-H 5.5 11.2 9.7 89.6 0.83 1465 1765 2 7.9
MX2-132M-4-H 7.5 15.0 13.0 90.4 0.84 1465 1765 7.5
MX2-160M-4-H 11 21.5 18.6 91.4 0.85 1470 1770 2.2 7.7
MX2-160L-4-H 15 28.8 24.9 92.1 0.86 1470 1770 7.8
MX2-180M-4-H 18.5 35.3 30.5 92.6 0.86 1470 1770 2.0
MX2-180L-4-H 22 41.8 36.3 93 0.86 1470 1770
MX2-200L-4-H 30 56.6 49.2 93.6 0.86 1475 1775 7.3
MX2-225S-4-H 37 69.6 60.4 93.9 0.86 1480 1780 7.4
MX2-225M-4-H 45 84.4 73.7 94.2 0.86 1480 1780
MX2-250M-4-H 55 103.0 89.0 94.6 0.86 1485 1785 2.2
MX2-280S-4-H 75 136.0 117.5 95 0.88 1490 1795 2 6.9
MX2-280M-4-H 90 163.0 140.8 95.2 0.88 1490 1795
MX2-315S-4-H 110 197.0 170.2 95.4 0.89 1490 1795 7 2.2
MX2-315M-4-H 132 236.0 203.8 95.6 0.89 1490 1795
MX2-315L1-4-H 160 285.0 246.2 95.8 0.89 1490 1795 7.1
MX2-315L2-4-H 200 352.0 304.0 96 0.9 1490 1795
MX2-355M-4-H 250 440.0 380.0 96 0.9 1490 1795
MX2-355L-4-H 315 554.0 478.5 96 0.9 1490 1795

6极 6poles

型号
Type
功率Output kW 电流
Current  A
效率
Eff.100%
功率因数
cosφ
转速
Speed r/min
堵转转矩/额定转矩
Locked-rotor torque vs Rated toque  Tst/Tn
堵转电流/额定电流
Locked-rotor current vs Rated current Ist/In
zui大转矩/额定转矩
Breakdown torque vs Rated torque Tmax/Tn
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz
MX2-90S-6-H 0.75 2.0 1.7 78.9 0.71 945 1155 2.0 6 2.1
MX2-90L-6-H 1.1 2.8 2.4 81 0.73 950 1160
MX2-100L-6-H 1.5 3.8 3.3 82.5 0.73 950 1160 6.5
MX2-112M-6-H 2.2 5.4 4.7 84.3 0.74 965 1170 6.6
MX2-132S-6-H 3 7.2 6.2 85.6 0.74 975 1180 6.8
MX2-132M1-6-H 4 9.5 8.2 86.8 0.74 975 1180
MX2-132M2-6-H 5.5 12.7 11.0 88 0.75 975 1180 7
MX2-160M-6-H 7.5 16.2 14.0 89.1 0.79 980 1185
MX2-160L-6-H 11 23.1 20.0 90.3 0.8 980 1185 7.2
MX2-180L-6-H 15 30.9 26.8 91.2 0.81 980 1185 7.3
MX2-200L1-6-H 18.5 37.8 32.6 91.7 0.81 985 1190
MX2-200L2-6-H 22 44.8 38.8 92.2 0.81 985 1190 7.4
MX2-225M-6-H 30 59.1 51.0 92.9 0.83 985 1190 6.9
MX2-250M-6-H 37 71.7 62.0 93.3 0.84 985 1190 7.1
MX2-280S-6-H 45 85.8 74.1 93.7 0.85 990 1190 7.3 2
MX2-280M-6-H 55 103.0 89.0 94.1 0.86 990 1190
MX2-315S-6-H 75 143.0 123.5 94.6 0.84 990 1190 6.6
MX2-315M-6-H 90 170.0 146.8 94.9 0.85 990 1190 6.7
MX2-315L1-6-H 110 207.0 178.8 95.1 0.85 990 1190
MX2-315L2-6-H 132 244.0 210.7 95.4 0.86 990 1190 6.8
MX2-355M1-6-H 160 296.0 255.6 95.6 0.86 995 1190 1.8
MX2-355M2-6-H 200 365.0 315.2 95.8 0.87 995 1190
MX2-355L-6-H 250 456.0 393.8 95.8 0.87 995 1190

外形及安装尺寸
(Mounting and Overall Dimensions)

机座号
Frame Size
安装及外形尺寸
Mounting and overall dimensions
A B C D E F G GD H K AB AC AD HD L
80M 125 100 50 19 40 6 15.5 6 80 10 165 175 160 240 305
90S 140 56 24 50 8 20 7 90 180 205 175 270 395
90L 125 425
100L 160 140 63 28 60 24 100 12 205 215 185 290 435
112M 190 70 112 245 255 200 320 475
132S 216 89 38 80 10 33 8 132 280 310 245 365 535
132M 178 550
160M 254 210 108 42 110 12 37 160 15 330 340 270 440 730
160L 254 760
180M 279 241 121 48 14 42.5 9 180 355 390 290 475 805
180L 279 835
200L 318 305 133 55 16 49 10 200 19 395 445 355 525 890
225S 356 286 149 (55)/60 (110)/140 (16)/18 (49)/53 (10)/11 225 435 495 370 580 865
225M 311 (865)/895
250M 406 349 168 (60)/65 140 18 (53)/58 11 250 24 490 550 455 650 995
280S 457 368 190 (65)/75 (18)/20 (58)/67.5 (11)/12 280 550 630 470 705 1030
280M 419 1080
315S 508 406 216 (65)/80 (140)170 (18)/22 (58)/71 (11)/14 315 28 744 645 576 875 (1270)/1300
315M 457 (1320)/1350
315L 508
355M 610 560 254 (75)/95 (20)/25 (67.5)/86 (12)/14 355 28 740 750 680 1045 (1560)/1590
355L 630
注:表格中括号内的数字为2极数据 。Note :The data in bracket refer to 2 poles motors

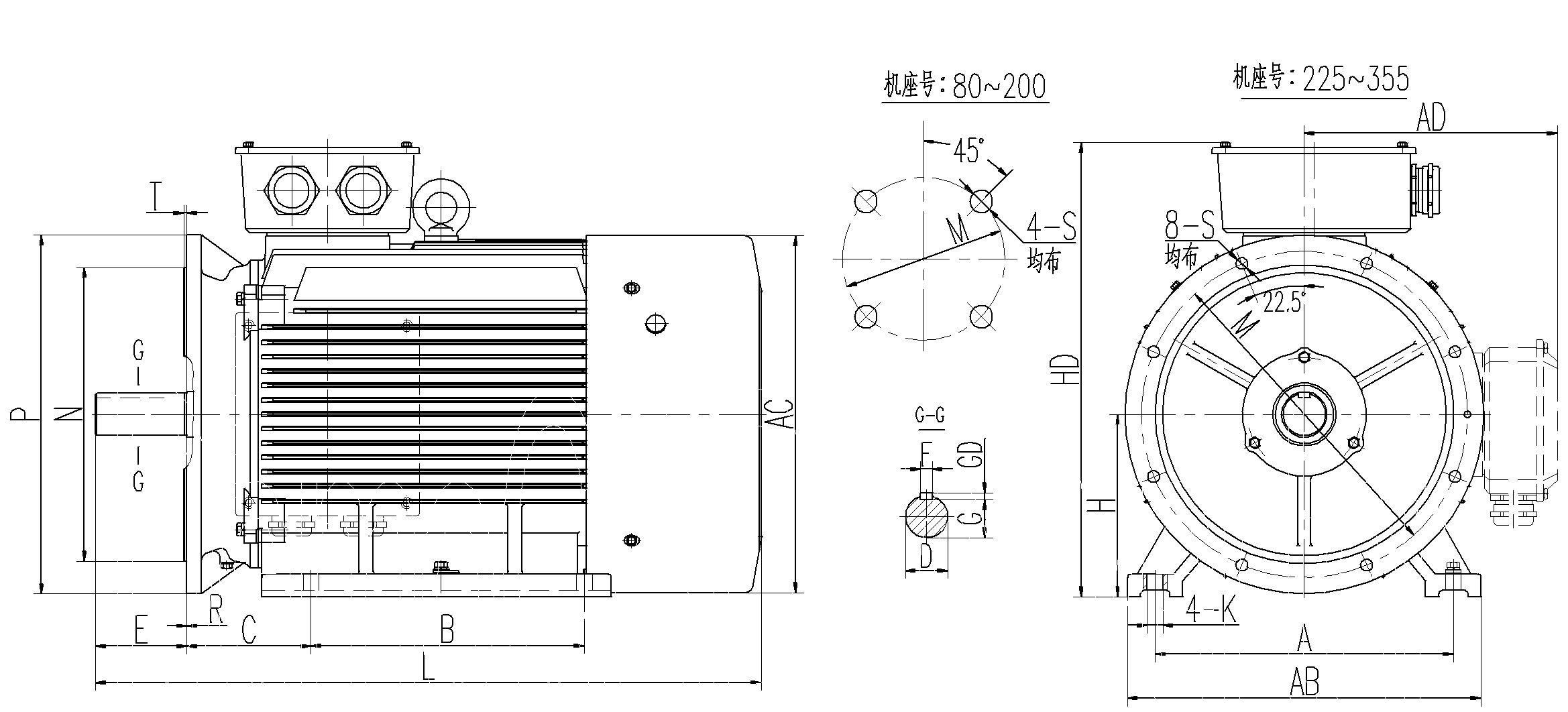

B35型(B35 Type)

机座号Frame size 安装及外形尺寸
Mounting and overall dimensions
A B C D E F G GD H K M N P R S T AB AC AD HD L
80M 125 100 50 19 40 6 15.5 6 80 10 165 130 200 0±1.5 12 3.5 165 175 160 240 305
90S 140 56 24 50 8 20 7 90 180 205 175 270 395
90L 125 425
100L 160 140 63 28 60 24 100 12 215 180 250 0±2.0 15 4 205 215 185 290 435
112M 190 70 112 245 255 200 320 475
132S 216 89 38 80 10 33 8 132 265 230 300 280 310 245 365 535
132M 178 550
160M 254 210 108 42 110 12 37 160 15 300 250 350 0±3.0 19 5 330 340 270 440 730
160L 254 760
180M 279 241 121 48 14 42.5 9 180 355 390 290 475 805
180L 279 835
200L 318 305 133 55 16 49 10 200 19 350 300 400 395 445 355 525 890
225S 356 286 149 (55)/60 (110)/140 (16)/18 (49)/53 (10)/11 225 400 350 450 0±4.0 435 495 370 580 865
225M 311 (865)/895
250M 406 349 168 (60)/65 140 18 (53)/58 11 250 24 500 450 550 490 550 455 650 995
280S 457 368 190 (65)/75 (18)/20 (58)/67.5 (11)/12 280 550 630 470 705 1030
280M 419 1080
315S 508 406 216 (65)/80 (140)170 (18)/22 (58)/71 (11)/14 315 28 600 550 660 24 6 744 645 576 875 (1270)/1300
315M 457 (1320)/1350
315L 508
355M 610 560 254 (75)/95 (20)/25 (67.5)/86 (12)/14 355 740 680 800 740 750 680 1045 (1560)/1590
355L 630
注:表格中括号内的数字为2极数据 。Note :The data in bracket refer to 2 poles motors.

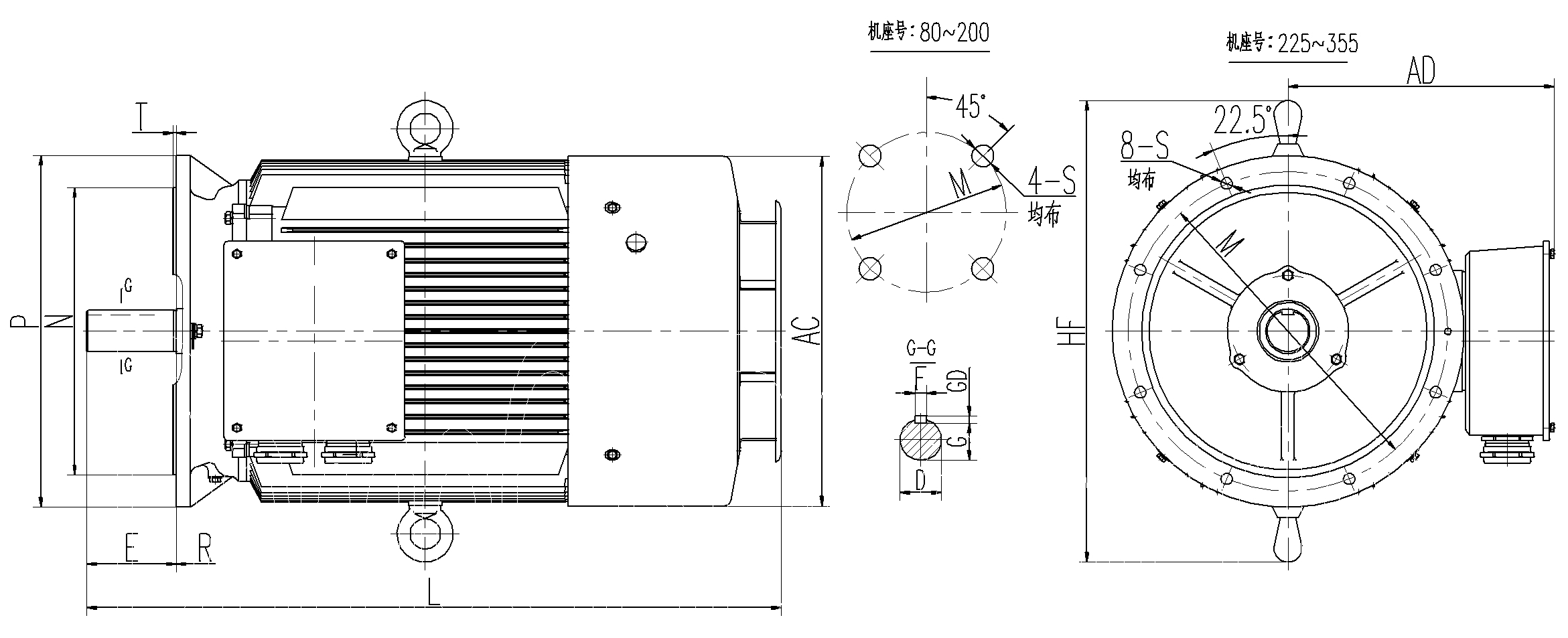

V1 型(V1 Type)

机座号
Frame Size
安装及外形尺寸
Mounting and overall dimensions
D E F G GD M N P S R T AC AD HF L
80M 19 40 6 15.5 6 165 130 200 12 0±1.5 3.5 175 160 260 350
90S 24 50 8 20 7 205 175 270 440
90L 475
100L 28 60 24 215 180 250 15 0±2.0 4 215 185 300 480
112M 255 195 320 520
132S 38 80 10 33 8 265 230 300 310 245 380 580
132M 590
160M 42 110 12 37 300 250 350 19 0±3.0 5 340 270 450 740
160L 815
180M 48 14 42.5 9 390 290 490 830
180L 845
200L 55 16 49 10 350 300 400 445 355 550 940
225S (55)/60 (110)/140 (16)/18 (49)/53 (10)/11 400 350 450 0±4.0 495 370 610 945
225M (945)/975
250M (60)/65 140 18 (53)/58 11 500 450 550 550 455 645 1095
280S (65)/75 (18)/20 (58)/67.5 (11)/12 630 470 720 1155
280M 1195
315S (65)/80 (140)170 (18)/22 (58)/71 (11)/14 600 550 660 24 6 645 576 900 (1370)1400
315M (1460)1490
315L
355M (75)/95 (20)/25 (67.5)/86 (12)/14 740 680 800 750 680 1035 (1650)1680
355L
注:表格中括号内的数字为2极数据。The data in bracket refer to 2 poles motors.

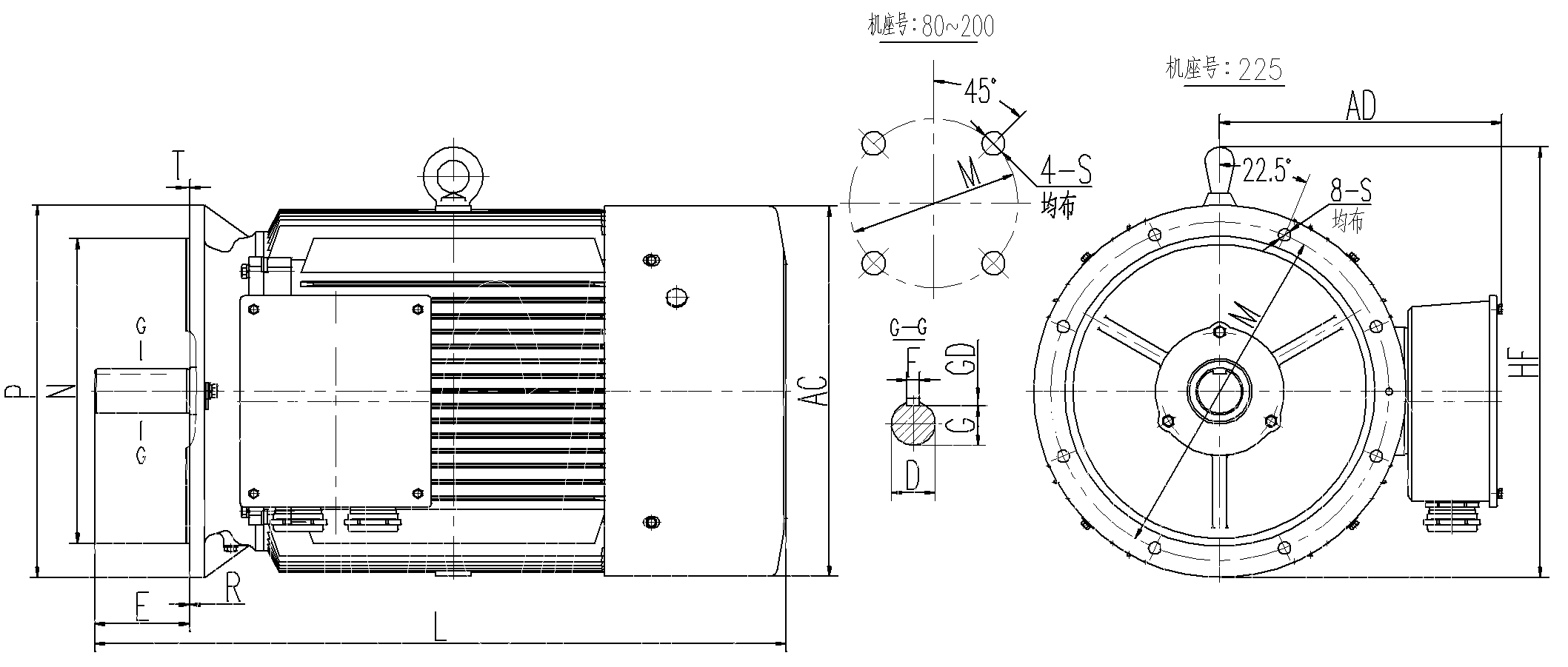

B5型(B5 Type)

机座号
Frame  size
安装及外形尺寸
Mounting and overall dimensions
D E F G GD M N P R S T AC AD HF L
80M 19 40 6 15.5 6 165 130 200 0±1.5 12 3.5 175 160 230 305
90S 24 50 8 20 7 205 175 235 395
90L 425
100L 28 60 24 215 180 250 0±2.0 15 4 215 185 275 435
112M 255 195 285 475
132S 38 80 10 33 8 265 230 300 310 245 340 535
132M 550
160M 42 110 12 37 300 250 350 0±3.0 19 5 340 270 400 730
160L 760
180M 48 14 42.5 9 390 290 435 805
180L 835
200L 55 16 49 10 350 300 400 445 355 480 890
225S (55)/60 (110)/140 (16)/18 (49)/53 (10)/11 400 350 450 0±4.0 495 370 530 865
225M (865)/895
注:表格中括号内的数字为2极数据。The data in bracket refer to 2 poles motors.

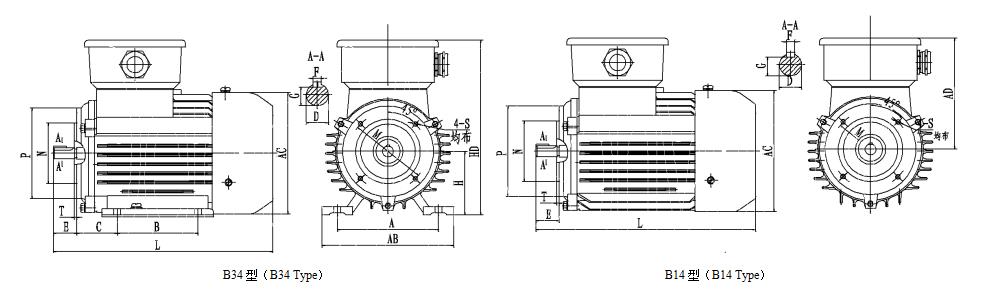

机座号
Frame Size
外形及安装尺寸
Mounting and Overall Dimension
B34 B14、B34 B3、B34 B14 L
A B C D E F G H K M N P S T AB AC HD AD
80 125 100 50 19 40 6 16 80 10 100 80 120 M6 3 165 175 240 160 305
90S 140 100 56 24 50 8 20 90 115 95 140 M8 180 205 270 175 395
90L 140 125 56 24 50 90 115 95 140 180 175 425
100L 160 140 63 28 60 24 100 12 130 110 160 3.5 205 215 290 185 435
112M 190 70 112 130 110 160 245 255 320 195 475
132S 216 89 38 80 10 33 132 165 130 200 M10 280 310 365 245 535
132M 178 165 130 200 550

注:本产品样本中,所有产品数据参数仅供参考,如有疑问请与工厂联系,并以定货时提供给用户的确认资料为准。
Note:All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
