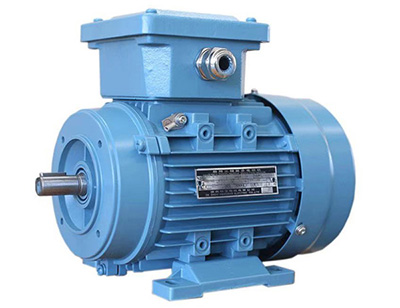

Y-H系列船用三相异步电动机

Y-H系列船用三相异步电动机(铝质机壳:机座号50~132)

Y-H Series Three phase Marine Asynchronous Motor(Aluminum enclosure:Frame Size50~132)

Y-H系列是全封闭,自扇冷鼠笼式船用三相异步电动机,广泛用于船舶上作驱动之用如中小型机床、风机等机械的动力装置。该系列电动机性能优良、节能省电、结构可靠、通用性强。

Y-H series motors are totally-enclosed, fan cooled three phase squirrel caged type. the motors are suitable for driving various machines on ships such as small size machine tool、fan and etc. the motors has advantage of high performance、energy-saving 、reliable structure and universally working .

工作环境条件(Operating Conditions)

海拔≤1000m

Altitude should be lower than 1000m above sea level

环境温度: 0~+45℃

Ambient temperature  0~+45℃

空气相对湿度 ≤95%

Relative humidity should be less than 95%.

倾斜:  ±30°

Inclination :±30°

摇摆:  ±22.5°

Swing:±22.5°

有盐雾、油雾、霉菌及海水的影响

Influenced by Dew、Salt mist、Oil mist、Fungus and sea water.

有船舶和近海装置正常营运和作业中产生的冲击、振动的影响

Influenced by shock and vibration come from ships and offshore installation.

外壳:铸造铝

Enclosure: casting aluminum

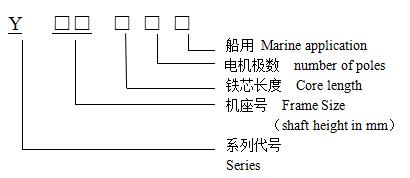

型号说明(Type Designation)

轴承(Bearing)

机座号 极数 轴承规格 轴承尺寸(mm)内径*外径*宽度
50 2、4 6200-2RS 10*30*9
56 2、4 6200-2RS 10*30*9
63 2、4 6201-2RS 12*32*10
71 2、4、6 6202-2RS 15*35*11
80 2、4、6 6204-2RS 20*47*14
90 2、4、6 6205-2RS 25*52*15
100 2、4、6 6206-2RS 30*62*16
112 2、4、6 6206-2RS 30*62*16
132 2、4、6、8 6208-2RS 40*80*18

技术数据(Technical Data)

型号
Type
功率
Output (kW)
电流
Rated Current(A)
转速
Rated Speed r/min
效率
Effi. %
功率因数
COSφ
起动电流/额定电流
Locked-rotor current VS Rated current Ik/In
起动转矩/额定转矩
Locked-rotor torque VS Rated torque Tk/Tn
zui大转矩/额定转矩
Breakdown torque VS Rated torque Tm/Tn
380V
50Hz
440V
60Hz
380V
50Hz
440V
60Hz
380V
50Hz
440V
60Hz
380V
50Hz
440V
60Hz
Y501-2-H 0.04 0.17 0.15 2800 3290 55 55 0.65 0.65 6 2.3 2.4
Y502-2-H 0.06 0.23 0.2 2800 3290 60 60 0.66 0.66
Y501-4-H 0.025 0.17 0.15 1400 1640 42 42 0.53 0.53
Y502-4-H 0.04 0.23 0.2 1400 1640 50 50 0.54 0.54
Y561-2-H 0.09 0.32 0.28 2800 3290 62 62 0.68 0.68
Y562-2-H 0.12 0.38 0.33 2800 3290 67 67 0.71 0.71
Y561-4-H 0.06 0.28 0.24 1400 1640 56 56 0.58 0.58
Y562-4-H 0.09 0.39 0.34 1400 1640 58 58 0.61 0.61
Y631-2-H 0.18 0.52 0.45 2800 3300 69 69 0.75 0.75 2.2
Y632-2-H 0.25 0.69 0.6 2800 3300 72 72 0.78 0.78
Y631-4-H 0.12 0.44 0.38 1400 1650 60 60 0.63 0.63
Y632-4-H 0.18 0.62 0.54 1400 1650 64 64 0.66 0.66
Y711-2-H 0.37 0.99 0.87 2800 3380 73.5 73.5 0.8 0.8
Y712-2-H 0.55 1.38 1.2 2800 3380 75.5 75.5 0.82 0.82
Y711-4-H 0.25 0.78 0.67 1400 1660 67 67 0.68 0.68
Y712-4-H 0.37 1.12 0.97 1400 1660 69.5 69.5 0.72 0.72
Y711-6-H 0.18 0.74 0.64 880 1090 56 56 0.66 0.66 4 1.9 2
Y712-6-H 0.25 0.95 0.82 880 1090 59 59 0.68 0.68
Y80M1-2-H 0.75 1.8 1.6 2820 3460 75 76.5 0.84 0.82 6.1 1.9 2.1
Y80M2-2-H 1.1 2.6 2.2 2820 3460 76.5 77.5 0.85 0.85 7
Y80M1-4-H 0.55 1.5 1.4 1390 1710 72.5 74 0.75 0.71 5.2 2
Y80M2-4-H 0.75 2.1 1.8 1390 1710 74 76 0.75 0.72 6 1.9
Y80M1-6-H 0.37 1.31 1.13 890 1110 63 63 0.7 0.7 4
Y80M2-6-H 0.55 1.7 1.47 890 1110 66 66 0.72 0.72
Y90S-2-H 1.5 3.5 3.1 2840 3470 79.5 80 0.82 0.85 7
Y90L-2-H 2.2 4.9 4.3 2840 3470 82.5 83.5 0.83 0.8
Y90S-4-H 1.1 2.7 2.4 1400 1710 78 79 0.78 0.75 6
Y90L-4-H 1.5 3.6 3.2 1400 1710 79 80.5 0.8 0.77
Y90S-6-H 0.75 2.2 2 910 1130 72.5 74 0.7 0.67 5.5 1.8 2
Y90L-6-H 1.1 3.2 2.9 910 1130 72.5 74 0.71 0.68
Y100L-2-H 3 6.2 5.4 2880 3490 84 84 0.87 0.86 7.5 1.9 2.1
Y100L1-4-H 2.2 5 4.5 1420 1730 81.5 82.5 0.81 0.78 7
Y100L2-4-H 3 6.8 5.9 1420 1730 83 85 0.81 0.78
Y100L-6-H 1.5 4 3.5 940 1150 77.5 79.5 0.73 0.7 5.5 1.8 2
Y112M-2-H 4 8.2 7.2 2890 3500 86.5 87 0.86 0.84 7.5 1.9 2.1
Y112M-4-H 4 8.9 7.7 1440 1750 84.5 86 0.81 0.79 7
Y112M-6-H 2.2 5.8 5.2 940 1150 79.5 82 0.72 0.68 6.5 1.8 2
Y132S1-2-H 5.5 11 9.6 2900 3520 86.5 86 0.88 0.87 7.5 1.5
Y132S2-2-H 7.5 14.6 12.9 2900 3520 87.5 87 0.89 0.88
Y132S-4-H 5.5 11.7 10 1440 1750 86 88 0.83 0.82 7 1.8
Y132M-4-H 7.5 15.4 13.2 1440 1750 87 88.5 0.85 0.84
Y132S-6-H 3 7.2 6.4 960 1170 83.5 83.5 0.76 0.74 6.5 1.8
Y132M1-6-H 4 9.5 8.2 960 1170 84 86 0.76 0.74
Y132M2-6-H 5.5 12.5 10.7 960 1170 86 87.5 0.78 0.77
Y132S-8-H 2.2 5.8 5.2 710 860 80 81 0.72 0.68 6 1.7 1.9
Y132M-8-H 3 7.6 6.8 710 860 82.5 83.5 0.73 0.69

电动机安装结构型式(Mounting Arrangement)

B3型 — 机座有底脚、端盖无凸缘 ;

B3 Type — Frame with foot and endshield without flange;

B35型 — 机座有底脚、端盖有大凸缘,安装孔为通孔 ;

B35 Type — Frame with foot and flange with big rabbet and through holes.

B34型 — 机座有底脚、端盖有小凸缘,安装孔为丝孔;

B34 Type — Frame with foot and flange with small rabbet and tapped holes.

B5型—机座无底脚、端盖有大凸缘,安装孔为通孔.

B5 Type — Frame without foot and flange with big rabbet and through holes.

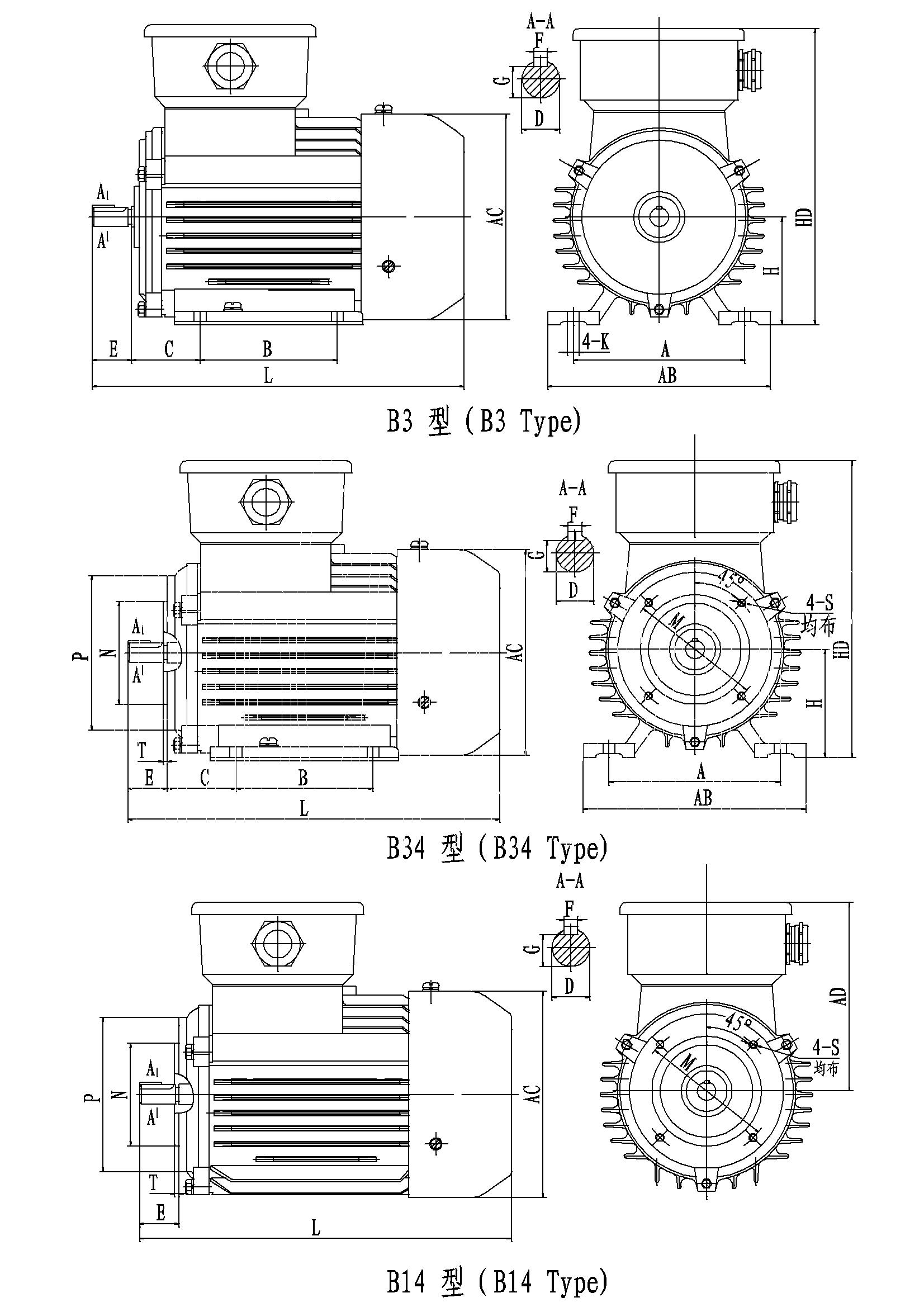

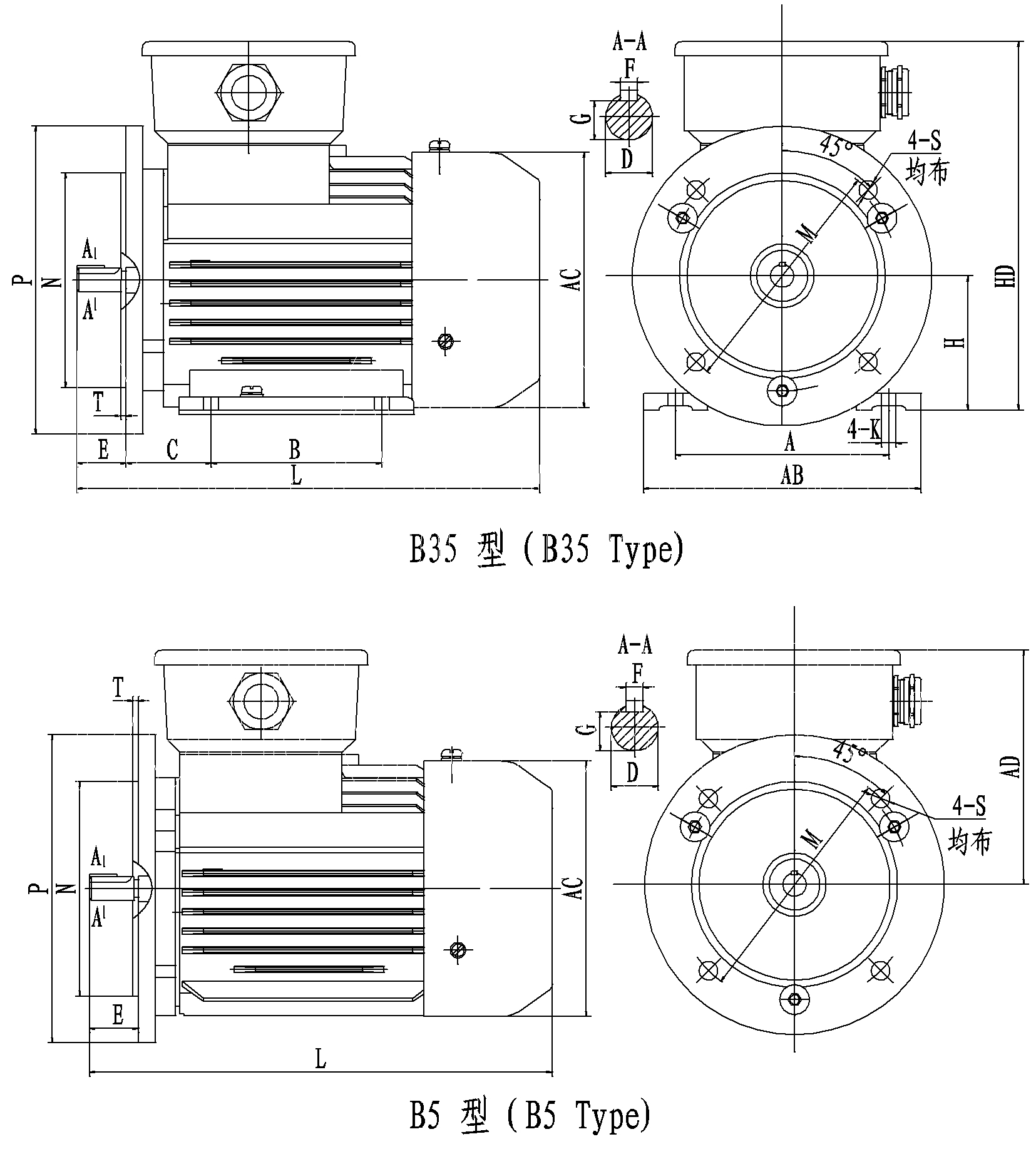

外形及安装尺寸
(Mounting and Overall Dimensions)

机座号
Frame Size
外形及安装尺寸
Mounting and Overall Dimension
B3、B34 B14、B34 B3、B34 B14 L
A B C D E F G H K M N P S T AB AC HD AD
50 80 63 32 9 20 3 7.2 50 6 55 40 70 M5 2.5 100 110 125 100 175
56 90 71 36 9 20 3 7.2 56 6 65 50 80 115 120 135 110 190
63 100 80 40 11 23 4 8.5 63 7 75 60 90 130 130 165 125 250
71 112 90 45 14 30 5 11 71 7 85 70 105 M6 145 145 180 140 275
80 125 100 50 19 40 6 16 80 10 100 80 120 3 160 165 200 150 300
90S 140 100 56 24 50 8 20 90 115 95 140 M8 180 185 240 160 335
90L 140 125 56 24 50 90 115 95 140 180 185 240 160 365
100L 160 140 63 28 60 24 100 12 130 110 160 3.5 205 215 290 185 385
112M 190 70 112 130 110 160 245 240 320 195 405
132S 216 89 38 80 10 33 132 165 130 200 M10 280 275 365 245 500
132M 178 165 130 200 540
机座号
Frame Size
外形及安装尺寸
Mounting and Overall Dimension
B35 B35、B5 B35 B5 L
A B C D E F G H K M N P S T AB AC HD AD
63 100 80 40 11 23 4 8.5 63 7 115 95 140 10 3 130 130 165 125 250
71 112 90 45 14 30 5 11 71 130 110 160 4 145 145 180 140 275
80 125 100 50 19 40 6 15.5 80 10 165 130 200 12 160 165 200 150 300
90S 140 100 56 24 50 8 20 90 165 130 200 180 185 240 160 335
90L 140 125 56 24 50 20 90 165 130 200 180 185 240 160 365
100L 160 140 63 28 60 24 100 12 215 180 250 15 4 205 215 290 185 385
112M 190 70 112 245 240 320 195 405
132S 216 89 38 80 10 33 132 265 230 300 280 275 365 245 500
132M 178 540

注:本产品样本中,所有产品数据参数仅供参考,如有疑问请与工厂联系,并以定货时提供给用户的确认资料为准。
Note:All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
