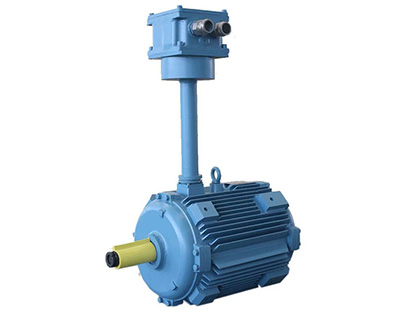

YBTX-H 系列船用风机用隔爆型三相异步电动机
YBTX-H Series Explosion-proof Three Phase Marine Asynchronous Motor For Axial Flow Fan
一、产品概述 Product Overview
YBTX-H系列电动机为全封闭隔爆型三相异步电动机。该电机符合GB3836.1《爆炸性气体环境用电气设备 第1部分 通用要求》和GB3836.2《爆炸性气体环境用电气设备 第2部分 隔爆型“d” 》的规定。具有性能好,噪声低,维修方便等优点。该系列电动机适用于防爆标志为ExdⅡCT4 Gb, 温度级别为T1~T4组的可燃性气体或蒸汽与空气形成的爆炸性混合物的场所,与CBZ-Ⅱ型船用防爆轴流通风机配套使用。
YBTX-H series motors are totally enclosed explosion-proof three phase asynchronous motors. The motors are designed and manufactured according to GB3836.1 “Electrical apparatus for explosive gas atomosphere-part1: General requirement” and GB3836.2 “Electrical apparatus for explosive gas atmosphere-part2:Flameproof enclosure “d ”.the motors have good performance ,low noise and easy maintenance. The motors can be used on the explosive mixture which compound with temperature class T1~T4 easy-ignition air or steam and air , where explosion-proof mark is ExdⅡCT4 Gb. The motors can be worked with CBZ-Ⅱtype of axial flow fan.
二、环境条件 Operation Condition
环境温度:-25~45℃;
Ambient temperature: -25~45℃;
海 拔:<1000m;
Altitude: <1000m;
zui大相对湿度:≤95%;
Relative humidity: ≤95%;
倾斜摇摆:±22.5℃(可能发生纵向和横向倾斜);
Inclination and swing: ±22.5℃(The longitudinal and lateral tilt might happened);
有油雾、盐雾、霉菌及海水的影响;
Oil-mist salt-mist fungus and sea water exist;
有船舶正常营运中产生的冲击、振动;
Shock and vibration might happened during shipping;
存在有引燃温度组别为T1~T4组的可燃性气体或蒸汽与空气形成的爆炸性混合物场所;
In air there might be exist explosive mixture which compound with temperature class T1~T4 easy-ignition air or steam and air.
二、基本参数Basic Parameter
电 制:380V/50Hz、440V/60Hz
Volt and Frequency: 380V/50Hz、440V/60Hz
绝缘等级:F
Insulation Class: F
防护等级:IP55、IP56
Degree of protection: IP55、IP56
防爆等级:ExdIICT4 Gb
Explosion-proof Mark: Exd IICT4 Gb
工作制:S1
Duty: S1
接 法:3kW及以下为Y,其他功率为△
Connection: 3kW or less than 3kW connected Y, the others connected △
绕组温升(电阻法)为80K,轴承允许温度(温度计法)为90℃
Temperature rise of winding(resistance method)shouldn’t exceed 80K, allowed temperature of bearing(thermometer method)shouldn’t exceed 90℃.
三、主要技术参数 Main Technical Data:
如下表所示:功率为0.75kW~55kW、极数为2、4、6、8极电动机的主要技术参数;
As table shown below, the main technical data of 2、4、6、8 poles of motors which output are 0.75kW~55kW.
型号
Type
|
功率
Output kW
|
电流
current A
|
转速
Speed r/min
|
型号
Type
|
功率
Output kW
|
电流
current A
|
转速
Speed r/min
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
380V 50Hz
|
440V 60Hz
|
YBTX-80M1-2-H
|
0.75
|
1.8
|
1.6
|
2820
|
3460
|
YBTX-200L-4-H
|
30
|
57.3
|
49.8
|
1476
|
1779
|
YBTX-80M2-2-H
|
1.1
|
2.6
|
2.2
|
2820
|
3460
|
YBTX-225M-4-H
|
45
|
84
|
73.4
|
1480
|
1783
|
YBTX-90S-2-H
|
1.5
|
3.5
|
3.1
|
2840
|
3470
|
YBTX-250M-4-H
|
55
|
103.8
|
88.7
|
1480
|
1780
|
YBTX-90L-2-H
|
2.2
|
4.9
|
4.3
|
2840
|
3470
|
YBTX-80M1-6-H
|
0.37
|
1.31
|
1.13
|
890
|
1110
|
YBTX-100L-2-H
|
3
|
6.4
|
5.4
|
2880
|
3490
|
YBTX-80M2-6-H
|
0.55
|
1.7
|
1.47
|
890
|
1110
|
YBTX-112M-2-H
|
4
|
8.2
|
7.2
|
2890
|
3500
|
YBTX-90S-6-H
|
0.75
|
2.2
|
2
|
910
|
1130
|
YBTX-132S1-2-H
|
5.5
|
11
|
9.6
|
2900
|
3520
|
YBTX-90L-6-H
|
1.1
|
3.2
|
2.9
|
910
|
1130
|
YBTX-132S2-2-H
|
7.5
|
14.6
|
12.9
|
2900
|
3520
|
YBTX-100L-6-H
|
1.5
|
4
|
3.5
|
940
|
1150
|
YBTX-160M1-2-H
|
11
|
21.6
|
18.7
|
2930
|
3540
|
YBTX-112M-6-H
|
2.2
|
5.8
|
5.2
|
940
|
1150
|
YBTX-160M2-2-H
|
15
|
28.9
|
25.1
|
2930
|
3540
|
YBTX-132S-6-H
|
3
|
7.2
|
6.4
|
960
|
1170
|
YBTX-160L-2-H
|
18.5
|
35.7
|
30.3
|
2930
|
3540
|
YBTX-132M1-6-H
|
4
|
9.5
|
8.2
|
960
|
1170
|
YBTX-180M-2-H
|
22
|
42.2
|
36.9
|
2940
|
3550
|
YBTX-132M2-6-H
|
5.5
|
12.5
|
10.7
|
960
|
1170
|
YBTX-200L1-2-H
|
30
|
57.9
|
50.3
|
2955
|
3560
|
YBTX-160M-6-H
|
7.5
|
17.1
|
14.8
|
970
|
1170
|
YBTX-200L2-2-H
|
37
|
69.4
|
60.3
|
2960
|
3565
|
YBTX-160L-6-H
|
11
|
25
|
21.7
|
970
|
1170
|
YBTX-225M-2-H
|
45
|
85.9
|
76.3
|
2969
|
3572
|
YBTX-180L-6-H
|
15
|
33
|
29.3
|
970
|
1180
|
YBTX-250M-2-H
|
55
|
103.2
|
91.7
|
2970
|
3570
|
YBTX-200L1-6-H
|
18.5
|
37.6
|
32.7
|
980
|
1183
|
YBTX-80M1-4-H
|
0.55
|
1.5
|
1.4
|
1390
|
1710
|
YBTX-200L2-6-H
|
22
|
44.7
|
38.9
|
980
|
1182
|
YBTX-80M2-4-H
|
0.75
|
2.1
|
1.8
|
1390
|
1710
|
YBTX-225M-6-H
|
30
|
61.1
|
53.1
|
985
|
1187
|
YBTX-90S-4-H
|
1.1
|
2.7
|
2.4
|
1400
|
1710
|
YBTX-250M-6-H
|
37
|
71
|
61.3
|
980
|
1180
|
YBTX-90L-4-H
|
1.5
|
3.6
|
3.2
|
1400
|
1710
|
YBTX-132S-8-H
|
2.2
|
5.8
|
5.2
|
710
|
860
|
YBTX-100L1-4-H
|
2.2
|
5
|
4.5
|
1420
|
1730
|
YBTX-132M-8-H
|
3
|
7.6
|
6.8
|
710
|
860
|
YBTX-100L2-4-H
|
3
|
6.8
|
5.9
|
1420
|
1730
|
YBTX-160M1-8-H
|
4
|
10.5
|
9.1
|
720
|
870
|
YBTX-112M-4-H
|
4
|
8.9
|
7.7
|
1440
|
1750
|
YBTX-160M2-8-H
|
5.5
|
13.4
|
11.5
|
720
|
870
|
YBTX-132S-4-H
|
5.5
|
11.7
|
10
|
1440
|
1750
|
YBTX-160L-8-H
|
7.5
|
17.7
|
15.5
|
720
|
870
|
YBTX-132M-4-H
|
7.5
|
15.4
|
13.2
|
1440
|
1750
|
YBTX-180L-8-H
|
11
|
25.6
|
22.2
|
730
|
880
|
YBTX-160M-4-H
|
11
|
22.6
|
19.5
|
1460
|
1760
|
YBTX-200L-8-H
|
15
|
33.3
|
29.2
|
729
|
882
|
YBTX-160L-4-H
|
15
|
30.5
|
26.3
|
1460
|
1760
|
YBTX-225M-8-H
|
22
|
47.4
|
41.7
|
734
|
886
|
YBTX-180M-4-H
|
18.5
|
35.9
|
30.8
|
1470
|
1770
|
YBTX-250M-8-H
|
30
|
64.7
|
57.1
|
730
|
890
|
YBTX-180L-4-H
|
22
|
42.2
|
36.9
|
1470
|
1770
|
|
|
|
|
|
|
机座号
Frame Size
|

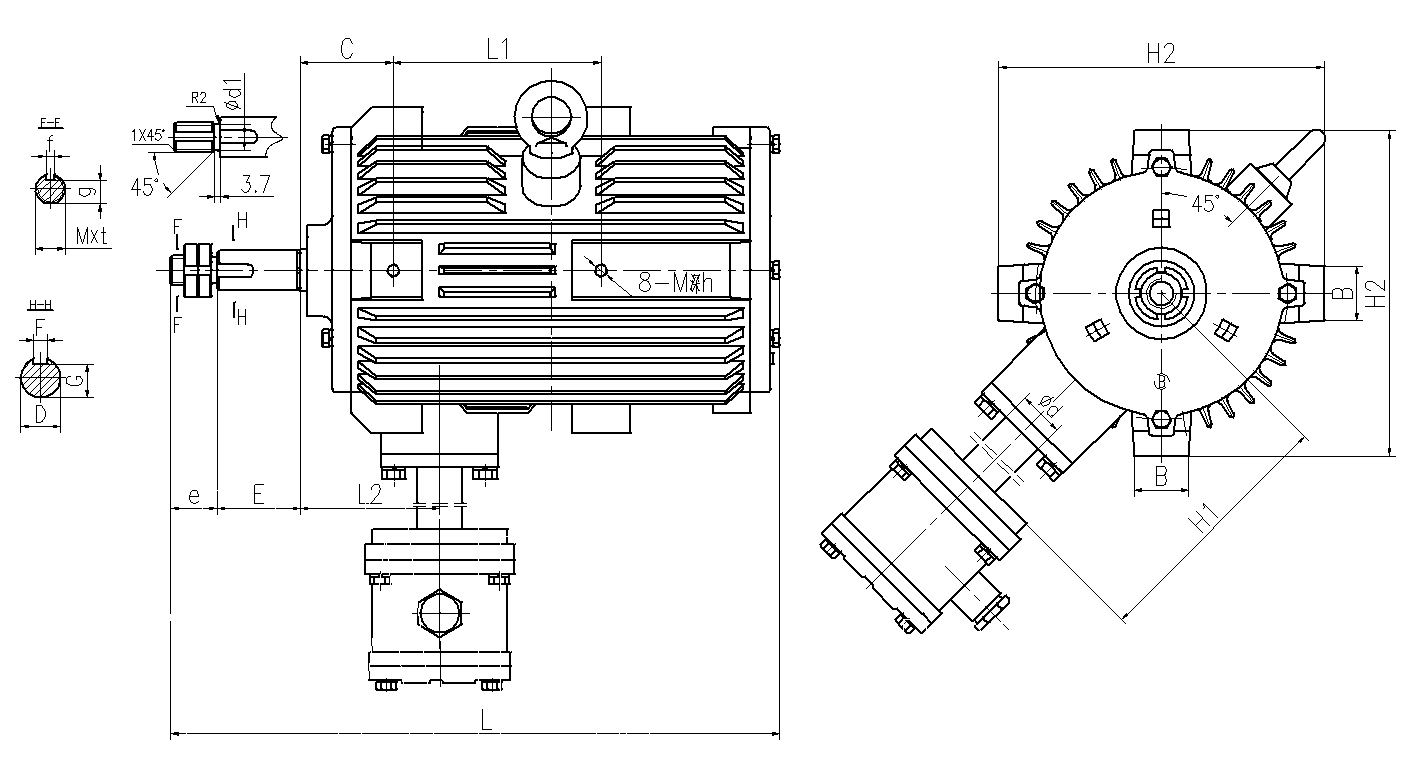

外形及安装尺寸
Mounting and Overall Dimension
|
B
|
C
|
D
|
E
|
F
|
G
|
H1
|
H2
|
e
|
L
|
L1
|
L2
|
d
|
d1
|
g
|
f
|
M×t
|
M深h
|
80M1
|
36
|
58±2
|
19
|
40
|
6
|
15.5
|
176
|
175
|
28
|
330
|
100
|
90
|
60
|
13.8
|
12
|
5
|
M16×1.5
|
M8 深 14
|
80M2
|
201
|
90S
|
62±2
|
24
|
50
|
8
|
20
|
280
|
190
|
340
|
15.8
|
14
|
M18×1.5
|
90L
|
226
|
375
|
125
|
100L1
|
40
|
68±2
|
28
|
60
|
24
|
280/330/380
|
220
|
410
|
140
|
93
|
17.8
|
16
|
M20×1.5
|
M10 深 17
|
100L2
|
280/380
|
112M
|
76±2
|
280/380/410
|
245
|
430
|
102
|
132S
|
89±2
|
38
|
80
|
10
|
33
|
280/435
|
285
|
32
|
450
|
120
|
21.8
|
20
|
M24×1.5
|
132M
|
410/435/485
|
495
|
178
|
160M
|
46
|
114±3
|
42
|
110
|
12
|
37
|
435/485/535
|
345
|
596
|
210
|
162
|
24.8
|
23
|
M27×1.5
|
160L
|
485/535/585
|
646
|
254
|
180M
|
54
|
126±3
|
48
|
14
|
42.5
|
485/585
|
380
|
702
|
241
|
174
|
27.8
|
26
|
M30×1.5
|
M14 深 22
|
180L
|
535/585/642
|
740
|
279
|
200L1
|
60
|
133±3
|
55
|
16
|
49
|
585/642
|
430
|
305
|
186
|
30.8
|
29
|
6
|
M33×1.5
|
M16 深 26
|
200L2
|
742
|
225M
|
70
|
149±3
|
60
|
140
|
18
|
53
|
642/735/742
|
480
|
870
|
311
|
196
|
76
|
33.8
|
32
|
M36×1.5
|
M18 深 30
|
250M
|
168±4
|
65
|
58
|
740
|
526
|
40
|
1000
|
340
|
38
|
38
|
8
|
M42×1.5
|
M16 深 24
|
注:本产品样本中,所有产品数据参数仅供参考,如有疑问请与工厂联系,并以定货时提供给用户的确认资料为准。
Note:All data shown on this catalogue is just for reference, all the data should be confirmed by final order, if you have any other questions, please contact us.
|
